Datasheet for Sharp P721Q

Sharp P721Q >

Professional DLP 4K UHD Laser Projector

Sharp P721Q Professional DLP 4K UHD Laser Projector

Datasheet

Sharp P721Q
Sharp P721Q

Sharp P721Q 4K UHD projector

Featuring crisp pixel-free 4K UHD image resolution and brightness of 7,200 ANSI lumen, the Sharp P721Q laser projector delivers exceptional image quality in perfect detail-rich clarity. Rooted in NEC’s legacy of quality and projection expertise, the new Sharp-branded DLP projection family is redefining large surface visual experiences in meeting rooms, museums, and higher education establishments.

Requiring zero maintenance over a long 20,000-hour lifespan, the sealed optical engine and laser light source means filter and lamp replacement is obsolete. Professional installation capabilities achieve the finest image alignment through motorized zoom and focus, complemented by a fully motorized lens shift for precision and clarity. Highly versatile, it’s easy to position the projector, simplifying installations and potentially reducing setup costs. With Risk Group 2 compliance, the new models eliminate the need for prescribed safety precautions, ensuring a safe and worry-free operating environment.

Benefits

  • Outstanding picture quality – a whole new visualization experience with up to 4K UHD pixel-free resolution for large surface detail-rich information
  • IP5X rated optical engine – protects against dust ingress for long lasting picture quality
  • Advanced Colour Sequence Management – eliminates the colour breaking phenomena
  • Professional and Flexible Installation – versatile projection characteristics allow for simple positioning of the projector, making installation easy and potentially saving set up costs.
  • No lamp replacement – up to 20,000 h maintenance free operation possible due to Laser Light Source.
Product Information
Product Name
Sharp P721Q
Product Group
Professional DLP 4K UHD Laser Projector
Order Code
60006067
Projection Technology
1-chip DLP™ Technology
Panel Resolution
1920 x 1080 (FHD)
Resolution
3840 x 2160 (4K UHD)
Aspect Ratio
16:9
Contrast Ratio
3000000:1
Brightness
7200 Lumen (approx. 60% in Eco Mode); compliant with ISO21118-2020
Lamp
Laser Light Source
Light Source Life [hrs]
20000 1
Lens
F= 2–2.4, f= 18.72–29.59 mm
Lense Adjustment
Motorized
Lens shift
H:±25, V:+55,-55
Keystone correction
+/- 40° manual horizontal / +/- 40° manual vertical
Projection Factor
1.25 – 2 : 1
Projection Distance [m]
1.6 – 13.4
Screen Size (diagonal) [cm] / [inch]
Maximum: 762 / 300"; Minimum: 152 / 60"
Zoom
Motorized; x1.6
Focus Adjustment
Motorized
Supported Resolutions
3840 x 2160 (Maximum resolution of digital input)

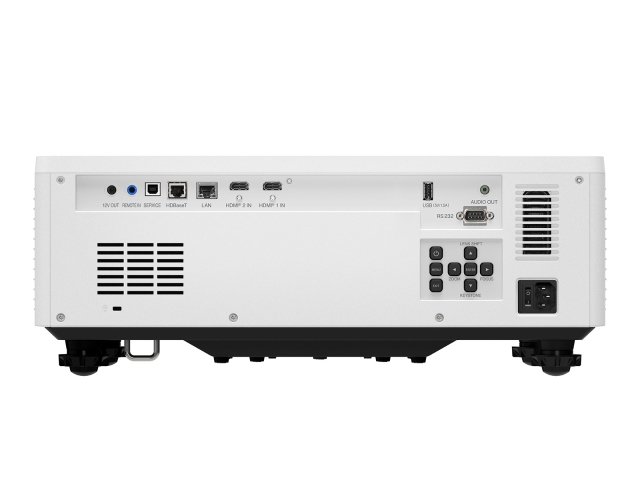

Connectivity
Digital
Input: 1 x HDBaseT; 2 x HDMI™ supporting HDCP
Audio
Output: 1 x 3.5 mm Stereo Mini Jack (variable)
Control
Input: 1 x D-Sub 9 pin (RS-232) (male)
LAN
1 x RJ45
USB
1 x Type B (for Service); 1x Type A (USB 2.0 high speed) with 1.5A Power Supply
Video Signals
NTSC 3.58; NTSC 4.43; PAL; PAL-M; PAL-N; PAL60; SECAM
Remote Control
Output:
1 x 3.5 mm Stereo Mini Jack for Screen Trigger
Remote Control
Aspect Ratio; Audio Control; Auto Adjust; Eco Mode Control; Freeze-function; Help-function; ID set; Keystone Correction; Magnify-function; Page (up, down); Picture Adjust; Picture Mute; Power (On-OFF); Presentation and Mouse Control; Select (up, down, left, right); Source Select
Electrical
Power Supply
100-240 V AC; 50 - 60 Hz
Power Consumption [W]
520 (Normal) / 280 (Eco) / 2 (Network Stand-by) / 0.5 (Stand-by)
Mechanical
Dimensions (W x H x D) [mm]
486 x 176 x 432.5 (without lens and feet)
Weight [kg]
14.7
Fan Noise [dB (A)]
34 / 36 (Eco / Normal)
Colour Versions
White
Environmental Conditions
Operating Temperature [°C]
0 to 45
Operating Humidity [%]
10 to 85
Storage Temperature [°C]
-10 to 60
Storage Humidity [%]
20 to 80
Ergonomics
Safety and Ergonomics
CE; EAC; ErP; RoHS; TUEV Type Approved
Speakers [W]
2 x 10 (mono)
Additional Features
Special Characteristics
3D ready; AMX Beacon; Auto Power ON/OFF; Carbon Savings Meter; Constant Brightness Mode; Control ID Function; Crestron RoomView; DICOM simulation; Free Tilt; Geometric Correction; HDBaseT; Help Function; HTTP Browser Control; IP5X/IP6X rated; Kensington security slot; Keypad Lock; Lens Memory; Light Source Adjustment; Magnify; NaViSet Administrator 2; OSD with 21 languages; Password Security System; PJ LINK; Portrait Setting; Quick Start; Sealed engine; Source Select with Beep Function; Test Pattern; Unique Power Saving Functions; USB Viewer
Green Features
Ecological Materials
Downloadable manuals; ECO packaging
Ecological Standards
ErP compliant; RoHs compliant
Warranty
Projectors
3 years pan-European service
Light Source
3 years or 10000h (whatever comes first)
Shipping Content
Shipping Contents
2x AAA Batteries; IR Remote Control (RRMCG0002VW01); Power Cord (3 m); Projector; Quick Setup Guide; Security Sticker
Optional Accessories
Optional Accessories
Universal Ceiling Mounts (PJ01UCM, PJ02UCMPF)

1 50% of initial brightness at the end of specified laser life time at 25 degree ambient temperature.

* This product has been equipped with a laser module and is classified as Class1 of IEC60825-1 Ed3 2014 and is classified as RG2 of IEC62471-5 Ed1 2015.
DO NOT LOOK DIRECTLY INTO THE BEAM.
