Datasheet
Bring your walls to life

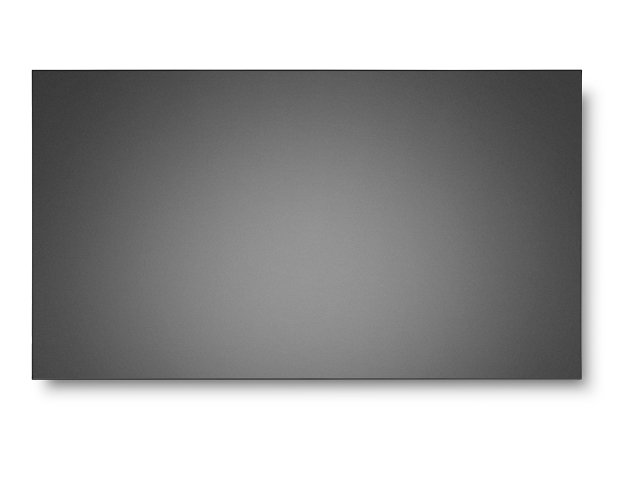

For the most engaging and creative visual experiences, the 55” Multisync® UN552S video wall display offers better image quality, easier installation and a reliable longer-lasting performance.
Installation and operation becomes so simple as powerful calibration capabilities provide compelling picture performance throughout the display’s entire lifetime. Tune picture attributes according to your specific application needs and create a single image across multiple displays. With a combined adjoining bezel of just 0.88mm, the holistic video wall experience offers an expansive digital canvas with barely noticeable interruption. The 700cd/m² display brightness and an anti-glare surface delivers the best readability with no annoying reflections even in bright ambient light conditions.
Attracting shoppers in retail malls, entertaining museum-goers or presenting menu choices, these large modular displays, in different shapes and formations, get your content noticed.
For the most engaging and creative visual experiences, the 55” Multisync® UN552S video wall display offers better image quality, easier installation and a reliable longer-lasting performance.
Installation and operation becomes so simple as powerful calibration capabilities provide compelling picture performance throughout the display’s entire lifetime. Tune picture attributes according to your specific application needs and create a single image across multiple displays. With a combined adjoining bezel of just 0.88mm, the holistic video wall experience offers an expansive digital canvas with barely noticeable interruption. The 700cd/m² display brightness and an anti-glare surface delivers the best readability with no annoying reflections even in bright ambient light conditions.
Attracting shoppers in retail malls, entertaining museum-goers or presenting menu choices, these large modular displays, in different shapes and formations, get your content noticed.
Benefits
- Easy installation – effortlessly set up you wall display with Auto TileMatrix and out-of-the-box calibrations. Save time by plugging in ready-to-use image presets for predefined application scenarios.
- Enhanced imaging performance – advanced settings of all relevant visual parameters allow full control of brightness, colour, gamma and uniformity via the SpectraView Engine for precise, natural images.
- Secure Reliability and Longevity of Video Walls – unique NEC heat management system enables the user to monitor and control the heat inside the display.
- Lifelike and consistent colour – expect colour reproduction that feels true to life with IPS panel technology, the top choice when it comes to colour consistency. The S-IPS panel ensures that perfect visibility is maintained in landscape and portrait mode and at extreme viewing angles as viewers pass by.
- Smart media integration – seamlessly integrate the media source of your choice into the video wall display. Use the wide range of NEC’s OPS Slot-in PCs, and Raspberry Pi compute modules, for content feed and computing.
Product Information
Product Name
NEC MultiSync® UN552S
Product Group
LCD 55" Video Wall Display
Order Code
60004523
Display
Panel Technology
S-IPS with Direct LED backlights
Active Screen Area (W x H) [mm]
1,209.63 x 680.34
Screen Size [inch/cm]
55 / 138.8
Aspect Ratio
16:9
Pixel Pitch [mm]
0.630
Brightness [cd/m²]
700
Contrast Ratio (default)
> 3500:1
Viewing Angle [°]
178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
Colour Gamut
72% of NTSC
Response Time (typ.) [ms]
8
Panel Refresh Rate [Hz]
60
Haze Level [%]
Pro (28)

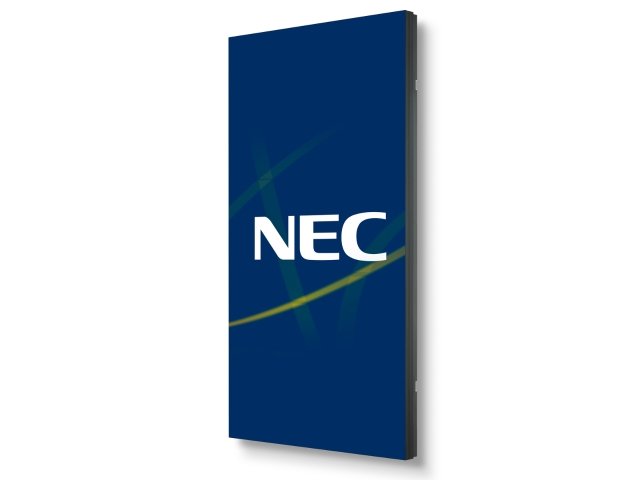

Supported Orientation
Landscape; Portrait
Resolution
Native Resolution
1920 x 1080
Supported on DisplayPort and HDMI
1024 x 768; 1080i; 1080p; 1280 x 1024; 1280 x 768; 1360 x 768; 1600 x 1200; 1920 x 1080; 3840 x 2160; 640 x 480; 720p (50/60 Hz); 800 x 600
Supported on HDMI only
1080i (50/60 Hz)
Synchronisation Rate
Horizontal Frequency [kHz]
26 - 134
Vertical Frequency [Hz]
23 - 86
Connectivity
Input Video Analogue
1 x VGA; Composite (RCA)
Input Video Digital
1 x DVI-D (with HDCP); 1 x OPS Slot; 2 x DisplayPort (with HDCP); 2 x HDMI (with HDCP)
Input Audio Analogue
2 x 3,5 mm jack
Input Audio Digital
2 x DisplayPort; 2 x HDMI
Input Control
1 x Remote Control (3.5 mm jack); 1 x RS232; 2 x LAN 100Mbit
Input Data
1 x microSD (MediaPlayer); 1 x USB 1.0 (Downstream); 1 x USB 1.0 (MediaPlayer); 1 x USB 2.0 (Upstream); 2 x USB 1.0 (Compute Module, 1 x 5V/2A powered)
Output Video Digital
1 x DisplayPort (loop through: DisplayPort, OPS slot-in PC); 1 x HDMI (loop through: HDMI, OPS slot-in PC, Mediaplayer)
Output Audio Analogue
1 x 3,5 mm jack
Output Control
LAN 100Mbit
Calibration
Factory Calibration
Gamma; Intensity; RGB; Uniformity; White Point
Sensor Calibration (through USB)
PC-less Calibration with USB Sensor MDSVSensor3; White Copy (post self-calibration)
Calibration with Software
Corner Uniformity; Gamma; Intensity; RGB; Update Factory Calibration; Update Uniformity Correction; White Point
Calibration Software
NEC Display Wall Calibrator
Open Modular Intelligence
OPS Slot
Slot Technology: Open pluggable specification (NEC / Intel OPS standard)
OPS Max. Current / Power Consumption [A / W]
3.6 / 58
Compute Module Slot
Slot Technology: Compute Module 3 Slot (NEC proprietary standard)
Sensors
Human Sensor
Optional, external, 4-5m range, triggered actions programmable
Temperature Sensor
Integrated, 3 sensors, triggered actions programmable
NFC Sensor
Integrated, 2cm range, free NEC Android App required
Electrical
Power Consumption [W]
165 shipping; 420 (max.)
Power Savings Mode [W]
< 0.5; < 2 (Networked Standby)
Environmental Conditions
Operating Temperature [°C]
+0 to +40
Operating Humidity [%]
20 to 80
Storage Humidity [%]
10 to 90
Storage Temperature [°C]
-20 to 60
Mechanical
Dimensions (W x H x D) [mm]
Without stand: 1,210.5 x 681.2 x 98.6
Weight [kg]
Without stand: 25.8
Bezel Width [mm]
0.44 bottom/right; 0.44 top/left; 0.88
VESA Mounting [mm]
4 holes; 400 x 400 (FDMI); M6
MediaPlayer
Supported Image Formats
JPG (baseline, progressive, RGB, CMYK); max. resolution 5000 x 5000; PNG (interlace, alpha channel); max. resolution 4000 x 4000
Supported Video Formats
MP4 / MOV / FLV (video H.264, audio MP3, AAC); max. resolution 1080p at 30 Hz, 1080i at 60 Hz; MPG (video mpeg1/2, audio mpeg audio layer2/3, AAC-LC); MP @ ML, MP @ HL; WMV (video H.264, wmv advanced L3, wmv simple / main, audio mp3 wmv std); max. resolution 1080p at 30 Hz, 1080i at 60 Hz
Supported Audio Formats
MP3 (MP3); max. bit-rate 320 kBit/s; WAV (LPCM); max. 48 kHz sampling
Available Options
Accessories
Calibration kit (KT-LFD-CC2); Feet (ST-5220); Remote control kit (KT-RC3); Speaker (SP-RM3); Wall mount (PD04VWM MFS 46-55 L/P; PD04VW QR 46-55 L/P; CK02XUN MFS 55 L/P)
Compute Module Slot
Raspberry Pi Compute Module 1 and 3
OPS Slot
Intel® Atom, Celeron and Core i3, i5, i7 Slot-in PCs
Regulatory
Safety and Ergonomics
BSMI; CE; EAC; EMC Class B; FCC; PSB; RCM; REACH; RoHS; SASO; TÜV GS; TÜV S; UL/C-UL; VCCI
Pixel Failure Class
ISO 9241-307, Class 2
Green Features
Energy Efficiency
Carbon savings meter; Energy consumption: 209 kWh/1000 h; Energy efficiency class: G; Human sensor; LED backlight
3rd Party Certifications
Crestron
Certified for Crestron Connected
Additional Features
Special Characteristics
Auto ID assignment; Auto tiling function; Automatic Alarm E-Mails; DICOM Simulation; Frame Comp; HTTP Server; Image flip; Intelligent Wireless Data (based on NFC); NaViSet Administrator 2 - free download; PJLink Support; TileMatrix; USB Media Player; User input priority definition; User readable log function
Colour Versions
Black Front Bezel, Black Back Cabinet
Audio
Optional Speakers (15 W + 15 W)
Plug and Play
VESA DDC/CI
Shipping Content
Display; DisplayPort Cable; HDMI Cable; LAN cable (RJ45); Power Cable
Warranty
3 years warranty incl. backlight; additional services available; optional 4. + 5. year warranty extension 1
Operating Hours
24/7
1 please refer to terms and conditions of warranty extensions
