Datasheet
Your pathway to signage digitisation
Offering a professional feature set and NEC’s renowned high reliability, yet at a very attractive price point, the NEC ME series presents the perfect opportunity to digitise your signage. Only commercial-grade displays are capable of delivering reliable, long-life performance and the ME Series presents lower budget business operators the upgrade path to professional digital signage without requiring specialist expertise.
Primed with an integrated USB MediaPlayer, the ME series offers out-of-the-box playback which can be easily upgraded thanks to NEC’s modular approach. Enjoy all the flexibility you need to create, schedule and broadcast expert signage content, meaning your messaging is always fresh and up to date. Capable of landscape or portrait orientation and up to 18/7 hours continuous operation, local retailers, restaurants and small business enterprises can deliver dynamic advertising and infotainment to their customers whilst benefiting from the efficiencies gleaned through digitisatition.
Benefits
- Modern and slim design – robust yet elegant allowing for an unobtrusive integration into any application and environment.
- Secure remote management – control your devices remotely and securely using NEC NaviSet Administrator 2; proactively manage maintenance requirements saving time and resources
- Ease of use and operation – smart installation, operation and maintenance functionality ensures accurate performance over the entire lifetime of the display saving time, effort and resources.
- Future Ready Connectivity – featuring multiple industry standard digital and analogue signal inputs for flexible integration into AV infrastructures.
- Effortless content playback – the integrated USB media player supports various image video file formats for effortless and standalone content playback.
Product Information
Product Name

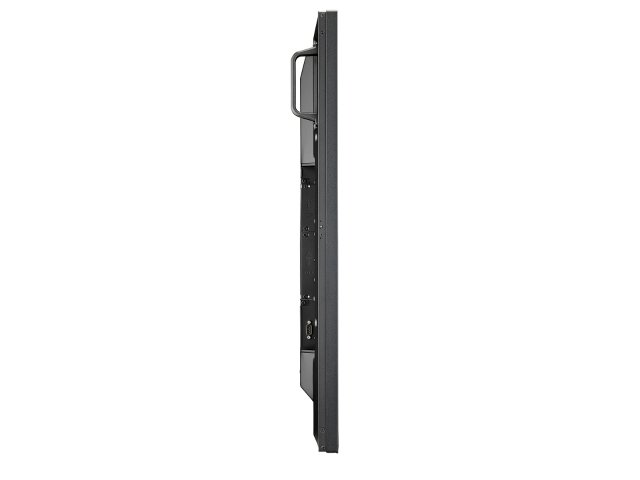

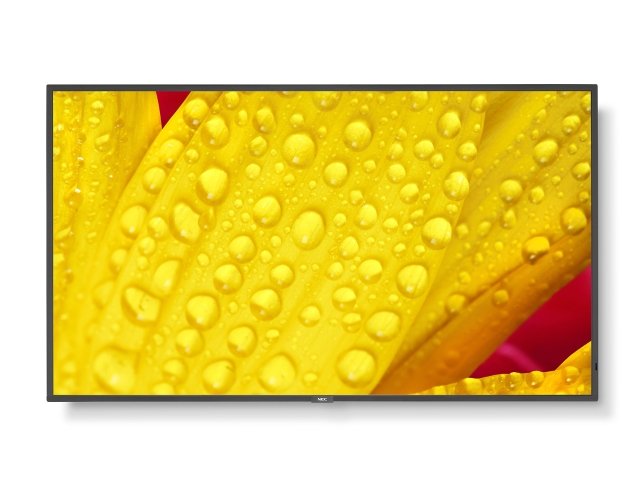

NEC MultiSync® ME501
Product Group
LCD 50" Message Essential Large Format Display
Order Code
60005053
Display
Panel Technology
VA with Direct LED backlights
Screen Size [inch/cm]
50 / 125.7
Aspect Ratio
16:9
Brightness [cd/m²]
400
Contrast Ratio
≥ 8000:1 1
Viewing Angle [°]
178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
Colour Depth [bn]
1.073 (8bit + FRC)
Response Time (typ.) [ms]
8
Panel Refresh Rate [Hz]
60
Haze Level [%]
Standard (1)
Supported Orientation
Landscape; Portrait
Resolution
Native Resolution
3840 x 2160
Supported Resolutions
1024 x 768; 1280 x 1024; 1280 x 720; 1360 x 768; 1366 x 768; 1400 x 1050; 1440 x 900; 1600 x 1200; 1650 x 1050; 1920 x 1080; 1920 x 1200; 1920 x 2160; 3840 x 2160; 4096 x 2160
Synchronisation Rate
Horizontal Frequency [kHz]
26 - 135
Vertical Frequency [Hz]
23 - 86
Connectivity
Input Video Digital
1 x DisplayPort (with HDCP); 2 x HDMI (with HDCP)
Input Audio Digital
1 x DisplayPort; 2 x HDMI
Input Control
LAN 100Mbit; remote control wire (3,5mm jack); RS232
Input Data
1 x USB 2.0 (MediaPlayer)
Output Audio Analogue
1 x 3,5 mm jack
Input Detect
Custom; First; Last
Open Modular Intelligence
Intel® SDM
accepts Intel® Smart Display Modules Large and Small up to 66 W
Compute Module Slot
RPi Compute Module 4
Sensors
Temperature Sensor
Integrated, 3 sensors, triggered actions programmable
Electrical
Power Consumption [W]
85 shipping
Power Savings Mode [W]
< 0.5; < 2 (Networked Standby)
Power Management
VESA DPMS
Power Supply
100-240 V AC; 50/60 Hz; internal
Environmental Conditions
Operating Temperature [°C]
+0 to +40
Operating Humidity [%]
20 to 80
Storage Humidity [%]
10 to 90
Storage Temperature [°C]
-20 to 60
Mechanical
Dimensions (W x H x D) [mm]
1,128.4 x 649 x 62.6
Weight [kg]
17.3
Bezel Width [mm]
14.9
VESA Mounting [mm]
4 holes; 400 x 400 (FDMI); M6
Ingress Protection
IP5x (front); IP2x (back)
Packaging Dimensions (W x H x D) [mm]
1,298 x 860 x 224
Packaging Weight [kg]
24.1
Colour Bezel
Pantone 426M (black)
Material
Metal
MediaPlayer
Supported File Storage / File System
USB 2.0 / FAT16, FAT32
Supported Image Formats
JPG (baseline, progressive, RGB, CMYK); max. resolution 15360 x 8640
Supported Video Formats
MPG (MPEG1/2/4, max res 1080p@30Hz); MP4 (MPEG2/4, H.263, H.264, HEVC/H.265, max res 3840x2160@60Hz); TS (MPEG2, H.264, HEVC/H.265, max res 3840x2160@60Hz); audio: LPCM, MP3, AAC; WMV (video H.264, Windows Media Video 9, max res 1080p@30Hz, audio WMA 9, WMA 10 Pro)
Supported Audio Formats
MP3 (MP3); max. bit-rate 320 kBit/s
Available Options
Accessories
Feet (ST-43M); MPi4 NEC MediaPlayer Kit; Presence Sensor (KT-RC3); Soundbar (active: SP-ASCM-IQ2 / SP-ASCM-2); Speaker (SP-RM3a); Trolley (PD04-Tipster Trolley); Wall mount (PDW S 32-65 L, PDW S 32-65 P)
Regulatory
Safety and Ergonomics
BSMI; CE; EAC; EMC Class B; Energy Star 8; FCC Class B; KC/KCC; PSB; RCM; RoHS; VCCI
Pixel Failure Class
ISO 9241-307, Class 1
Resistance to Fire
Metal backcover, plastic material certified acc. to UL94-5VB
Green Features
Energy Efficiency
Energy consumption: 85 kWh/1000 h; Energy efficiency class: G; LED backlight
Ecological Standards
EnergyStar 8.0
Additional Features
Special Characteristics
DICOM Simulation; HDMI ARC; Powered USB Port (10 W); Removable Logo
Audio
Integrated Speakers (10 W + 10 W)
Shipping Content
2x AAA batteries; Display; HDMI Cable; Power Cable; Remote Control; Setup Manual
Warranty
3 years warranty incl. backlight; additional services available; optional 4. + 5. year warranty extension 2
Operating Hours
18/7
External Control
AMX NetLinx Support; ASCII Control Commands; Crestron Connected; HDMI CEC; HTTP Browser; PJLink; Scheduled Timer; SNMP
Remote Management
Automated Email Alerts; NEC NaViSet Administrator 2
Security
Disable HW Buttons; Disable IR Functionality; Disable IR Functionality; Emergency Notification; Emergency Notification
1 out of the box conditions, local dimming ON
2 please refer to terms and conditions of warranty extensions
