Datasheet for NEC LED-FA009i2-165

NEC LED-FA009i2-165

Indoor LED 0.95 mm 165" UHD Bundle

NEC LED-FA009i2-165 Indoor LED 0.95 mm 165" UHD Bundle

Datasheet

NEC LED-FA009i2-165
NEC LED-FA009i2-165

Extreme visual performance

Delivering extreme levels of visual performance where the finest detail matters the most; NEC’s 0.9mm super-fine pixel pitch LED FA009i2 modules and bundles offer a premium solution for boardrooms, control rooms, luxury retail environments and simulation.

The super-fine pixel pitch enables configuration of an ultra-high-resolution canvas at a screen size of just 165” for demanding application scenarios where the viewing distance is short and the content requires highly detailed scrutiny.

With an innovative 4-in-1 IMD diode design, reality-like image presentation can be achieved without interruption from bezels or gaps, delivering excellent viewing angles, consistent vibrant colours and superb brightness. Designed with industry-grade quality and redundancy for key components, the FA Series provides a display solution with longevity and unmatched reliability.

Benefits

  • Care-free installation – with bundled solutions that deliver all you need to get your LED video wall up and running.
  • Large scale for perfectly detailed imagery – completely bezel-less design with high contrast rates deliver an unhindered viewing experience.
  • Secure performance for demanding applications – with high-end components and redundant module design with additional power supply and data cards to ensure ongoing operations with a minimal loss of brightness levels.
  • Superb readability in bright light environments – high brightness levels of up to 600 cd/m², along with wide viewing angles deliver clear messages to your audience even under varying and demanding ambient conditions.
  • Slim design – with a flush rear profile, LED modules can be integrated very close to the wall with minimal gap necessary due to very low heat emission.
Product Information
Product Name
NEC LED-FA009i2-165
Product Group
Indoor LED 0.95 mm 165" UHD Bundle
Order Code
81000101
Display
Pixel Configuration
4-in-1 IMD (Black)
LED type
IMD (1616)
Screen Size [inch/cm]
165 / 419
Aspect Ratio
16:9
Pixel Pitch [mm]
0.95
Brightness (max.) [cd/m²]
600
Lifetime
100000 hrs (50% brightness)
Contrast Ratio (typ.)
5000:1
Viewing Angle [°]
140 horizontal / 140 vertical
Dimming Capability
256 levels
Colour Processing
16 bit
Colours [Trill.]
281
LED Driving Method
1/46 dynamic scan
Frame Rate [Hz]
50/60
Refresh Rate [Hz]
≤ 3840
Colour Temperature [K]
3000 - 9500
Screen Resolution
Resolution
3840 x 2160
Resolution per m²
1108033
Number of Pixel per module [dot]
640 x 360
Number of Pixel per card [dot]
160 x 180
Connectivity
Input Video Digital
1 x 3G SDI; 1 x DVI-D; 1 x HDMI
Input Control
1 x GenLock; 1 x LAN
Electrical
Total Power Consumption [W]
2880 typ. / 5400 max.
Power Consumption typ. [W]
380 per m² (normal use)
Power Consumption max. [W]
720 per m²
Environmental Conditions
Operating Temperature [°C]
-20 to 40
Operating Humidity [%]
10 to 80
Mechanical
Dimensions (W x H x D) [mm] per module
608 x 342 x 49
Dimensions (W x H x D) [mm]
3,688 x 2,173.5 x 82
Weight [kg]
390.8
Additional Features
Shipping Content

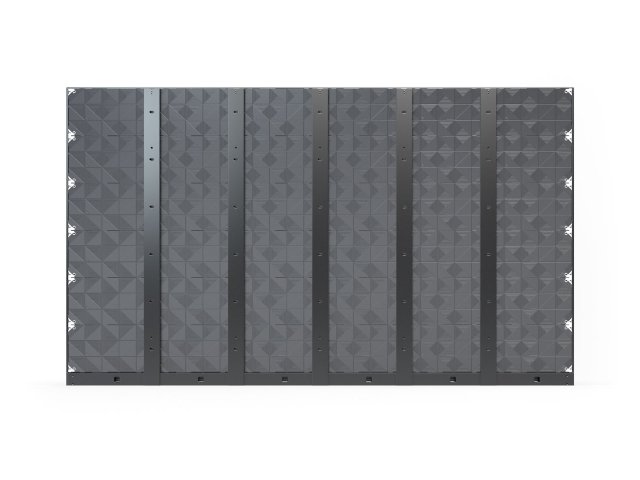

4x LED Controller; LED Modules (36 Cabinets, 288 Pixel Cards); Overframe Kit (6x6); Pixel Card Removal Tool; Power Bar; Spare Parts Kit; Wall mount (6x6)
Special Characteristics
Cableless Connector for Data and Power; Flush Surface SMD Design; Humidity-proof SMD Design; Redundant Data Receiving Cards; Redundant Power Supplies
Manufacturer
NEC
Serviceability
Front Service
IP Level
IP20
Certifications
CE; ETL; FCC Class A; RoHS
Warranty
3 years
Material
Aluminum Cabinet

* 165 inch
