Preliminary Datasheet
High efficiency dvLED paired with imaging performance
The direct View LED Series FE uses the latest flip-chip SMD technology to deliver stunning image performance with a state-of-the-art level of quality while increasing energy efficiency significantly to ensure reduced operating cost during its entire lifetime.
The Flipchip SMD Technology enables the FE to significantly lower the power consumption while also reducing the product heat load.
Benefit from excellent viewing angles, consistent vibrant colours, strong black levels, superb brightness and long lasting performance for meeting rooms and signage applications.
Benefits
- Significantly lowering your energy usage – the highly efficient Flipchip SMD technology consumes up to 60% less power compared to standard SMD technology at the same brightness output.
- Excellent contrast ratio of up to 8000:1 and deep black level – ensures content is presented in vivid clarity for the best possible viewing experience.
- Minimized interference – low electromagnetic emissions allowing for EMC Class-B certified modules.

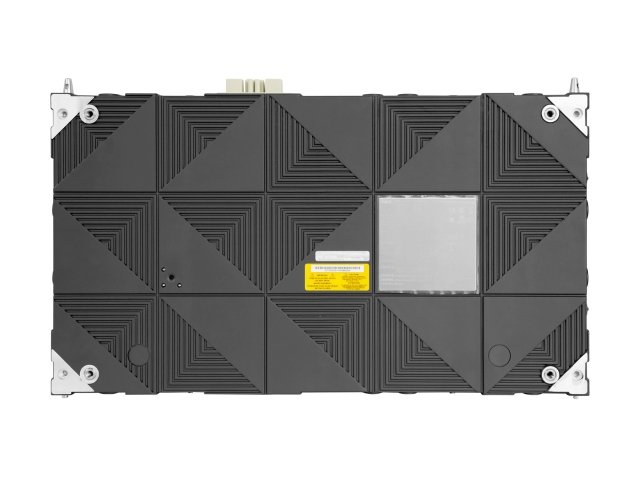

- Slim design – with a flush rear profile, LED modules can be integrated very close to the wall with minimal gap necessary due to very low heat emission.
- Established mechanical cabinet design – supports wall mounted or freestanding installation with speed and ease, achieving precision module alignment for a single large surface perception.

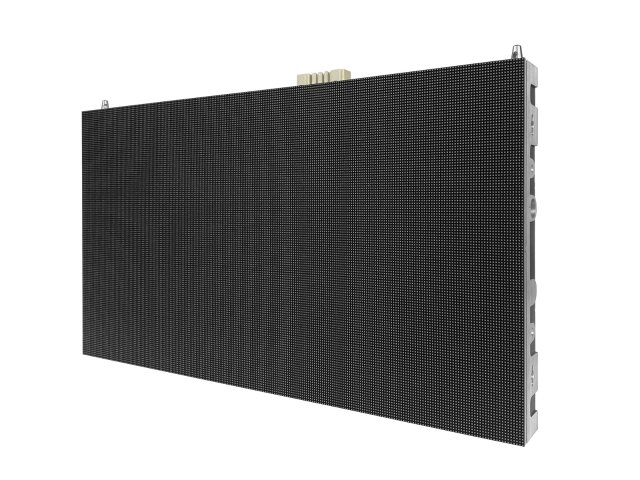

Product Information
Product Name
Sharp LD-FE153
Product Group
1.5 mm Indoor FinePitch LED Module
Order Code
81000655
Display
Pixel Configuration
3-in-1 SMD (Black)
LED type
FlipChip SMD (1010)
Pixel Pitch [mm]
1.5
Brightness (max.) [cd/m²]
800
Lifetime
100000 hrs (50% brightness)
Contrast Ratio (typ.)
10000:1
Viewing Angle [°]
170 horizontal / 160 vertical
Dimming Capability
256 levels
Colour Processing
16 bit
Colours [Trill.]
281
LED Driving Method
1/48 dynamic scan
Frame Rate [Hz]
50/60
Refresh Rate [Hz]
≤ 3840
Colour Temperature [K]
3000 - 9500
Screen Resolution
Resolution per m²
398892
Number of Pixel per module [dot]
384 x 216
Number of Pixel per card [dot]
96 x 108
Electrical
Power Consumption typ. [W]
106 per m² (normal use)
Power Consumption max. [W]
197 per m²
Power Consumption typ. [BTU]
361 per m² (normal use)
Power Consumption max. [BTU]
624 per m²
Environmental Conditions
Operating Temperature [°C]
-20 to 40
Operating Humidity [%]
10 to 80
Mechanical
Dimensions (W x H x D) [mm] per module
608 x 342 x 49
Weight [kg]
8.8
Additional Features
Special Characteristics
Cableless Connector for Data and Power; Flush Surface SMD Design; Single Data Receiving Cards; Single Power Supplies
Manufacturer
NEC
Serviceability
Front Service
IP Level
IP20
Certifications
CE; ETL; FCC Class A; RoHS
Warranty
3 years
Material
Aluminum Cabinet
CE
FCC Class A
RoHS
